Khoom Specification

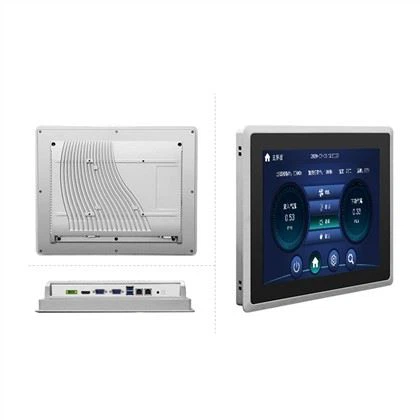

Peb lub tshuab kov tag nrho-hauv-ib qho yog tsim los rau cov ntawv thov kev lag luam, muaj peev xwm tiv taus ib puag ncig hnyav thiab cov xwm txheej hnyav ntawm ntau qhov chaw ua haujlwm. Nws nta cov qauv kev lag luam-qib txhuas thiab cov qauv ua haujlwm siab fin-hom cua sov dissipation qauv, muaj peev xwm hloov mus rau ntau yam kev ua haujlwm nyuaj thiab hnyav, suav nrog cov plua plav siab thiab kev ua haujlwm ruaj khov hauv qhov kub thiab txias.

Lub tshuab no muaj DC, COM, HDMI, USB 3.

Txais kev lag luam-qib aluminium qauv thiab high-efficiency fin-type heat dissipation qauv, nws tuaj yeem ua haujlwm ruaj khov nyob rau hauv qhov chaw kub thiab tsis kub thiab tuaj yeem ua haujlwm ib txwm nyob hauv ib puag ncig ntawm rho tawm 20 degrees Celsius thiab 55 degrees Celsius.

Hauv plawv ntawm cov khoom lag luam zoo tshaj plaws no yog cov cuab yeej zoo touchscreen nrog kev txhawb nqa rau 10-kov, uas cog lus tias yuav xa cov duab tsis pom tseeb thiab cov lus teb rau cov neeg siv interface.

Cov ntsiav tshuaj no tau dhau IP65 ntawv pov thawj, uas tuaj yeem tiv thaiv dej los ntawm kev nkag mus rau hauv cov chaw tsim khoom lossis ib puag ncig tshwj xeeb, ua kom muaj kev nyab xeeb thiab ua haujlwm zoo ntawm lub tshuab.

Txhua-aluminium lub cev muaj qhov hnov zoo dissipation effect, kiv cua tsis ntsiag to, thiab tsis muaj suab nrov. Txawm tias nyob rau hauv kev ua haujlwm siab, nws tuaj yeem ua haujlwm ruaj khov hauv lub sijhawm tiag tiag thiab txuas ntxiv lub neej kev pabcuam ntawm lub tshuab.

Lub thav duab rov qab plhaub yog ua los ntawm aluminium alloy, uas yog tuag-cam khwb cia hauv ib zaug. Cov qauv yog ntau tus qauv thiab tag nrho yog compact.

Cov qauv no muaj 10.4, 12.1,15, 17, 19 nti tuaj yeem xaiv tau, peb kuj muaj lwm cov qauv uas muaj qhov me me lossis loj dua.

Senke Industrial PC		SK-K10 DR	SK-K12 DR	SK-K15 DR	SK-K17 DR	SK-K19 DR
Motherboard	Kev lees paub	J6412,i3-7100U,i5-7200U,DDR4-4GB,SSD-128GB
Interface	WiFi, 3/4G module	802.11b/g/n(optional), Support3g/4g(optional)
	HDMI	1 * HDMI tso zis
	USB	2USB3.0,2USB2.0
	Network	2 * RJ45 nrog 1000 Base-T
	Com	com(RS485)*2
	Fais fab mov	1 * DC xauv phoenix davhlau ya nyob twg, Kev them nyiaj yug 9-36V
	Suab tso zis	1 * 3.5 hli
	Lwm yam	8 * GPIO (yeem)
Zaub	Hom npo	10.4 LCD npo	12.1 LCD npo	15 LCD npo	17 LCD npo	19 LCD npo
	Kev daws teeb meem	1024*768	1024*768	1024*768	1280*1024	1280*1024

	Qhov sib piv piv	1000:1	800:1	1000:1	1000:1	1000:1
	Brightness	200cdm 2	200cdm 2	250cdm 2	250cdm 2	250cdm 2
	Brightness yeem	1000cdm 2	1000cdm 2	1000cdm 2	1000cdm 2	1000cdm 2
	Screen piv	4:3	4:3	4:3	5:4	5:4
Qauv	Pem hauv ntej thiab nraub qaum	Aluminium
	Khoom siv tes ua	iav ncej muab tshuaj txhuam, aluminium tuag casting
	Xim	Dub, grey
	Thaum tshav kub kub dissipation	Fanless aluminium fin kub dissipation
	Vaj huam sib luag qhia teeb	Lub zog lub xeev, hard disk xeev
	Tag nrho qhov loj	281 * 228 * 67.2 hli	314.9 * 253.7 * 67.2 hli	370 * 294 * 68.2 hli	404 * 341 * 69.2 hli	445 * 375 * 72.2 hli
Kov npo	Hom	Projected capacitive kov npo
	Kov taw tes	10 point kov
	Lub cev daws teeb meem	4096x4096
	Teb sijhawm	<5ms
	Qhov tseeb	<2.5mm
	Pob tshab	Ntau dua lossis sib npaug li 90%
	Kev tiv thaiv	Qhov saum npoo yog coated nrog 1: 1 PVC tiv thaiv zaj duab xis
Lwm tus	Ua haujlwm ib puag ncig	-20 degree ~ 70 degree ; Cov av noo: 10% ~ 90%
	Cia ib puag ncig	Kub: -40 degree ~ 80 degree; Cov av noo: 10% ~ 90%
	Installation txoj kev	Embedded, VESA 100 * 100mm
	Kev siv fais fab	24W	25W	33W	34W	37W
Khoom siv	Phau ntawv	Tus neeg siv phau ntawv, daim ntawv pov thawj ntawm kev tsim nyog, daim ntawv pov thawj
	Bracket	phab ntsa mounted bracket, embedded bracket, desktop bracket (yeem)
	Adapter	Fais fab adapter

Daim ntawv thov:

101

Lub vaj huam sib luag pc no yog ib qho yuav tsum muaj cov cuab yeej rau ntau yam kev lag luam. Cov lus qhia no yog tsim los tiv thaiv qhov chaw ua haujlwm hnyav thiab muab kev ua tau zoo rau kev lag luam thiab kev lag luam. Cov khoom no yog siv dav hauv ntau lub chaw tsim khoom, chaw tsim kho, thiab lwm yam xwm txheej ua haujlwm.
